How To Make ListWheelScrollView Horizontal
I Am trying to have a horizontal ListView Widget that magnifies the center items. I tried using the normal ListView but I couldn't get the center items to magnify. Then while searc
Solution 1:
Edit: I have published package based on this.
pub.dev/packages/list_wheel_scroll_view_x
Here's my workaround.
import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';
class ListWheelScrollViewX extends StatelessWidget {
final Widget Function(BuildContext, int) builder;
final Axis scrollDirection;
final FixedExtentScrollController controller;
final double itemExtent;
final double diameterRatio;
final void Function(int) onSelectedItemChanged;
const ListWheelScrollViewX({
Key key,
@required this.builder,
@required this.itemExtent,
this.controller,
this.onSelectedItemChanged,
this.scrollDirection = Axis.vertical,
this.diameterRatio = 100000,
}) : super(key: key);
@override
Widget build(BuildContext context) {
return RotatedBox(
quarterTurns: scrollDirection == Axis.horizontal ? 3 : 0,
child: ListWheelScrollView.useDelegate(
onSelectedItemChanged: onSelectedItemChanged,
controller: controller,
itemExtent: itemExtent,
diameterRatio: diameterRatio,
physics: FixedExtentScrollPhysics(),
childDelegate: ListWheelChildBuilderDelegate(
builder: (context, index) {
return RotatedBox(
quarterTurns: scrollDirection == Axis.horizontal ? 1 : 0,
child: builder(context, index),
);
},
),
),
);
}
}
Solution 2:
You can do this using the built-in ListWheelScrollView by pairing it with the Rotated Box. This is kind of a hack which works.
RotatedBox(
quarterTurns: -1,
child: ListWheelScrollView(
onSelectedItemChanged: (x) {
setState(() {
selected = x;
});
},
controller: _scrollController,
children: List.generate(
itemCount,
(x) => RotatedBox(
quarterTurns: 1,
child: AnimatedContainer(
duration: Duration(milliseconds: 400),
width: x == selected ? 60 : 50,
height: x == selected ? 60 : 50,
alignment: Alignment.center,
decoration: BoxDecoration(
color: x == selected ? Colors.red : Colors.grey,
shape: BoxShape.circle),
child: Text('$x')))),
itemExtent: itemWidth,
)),
);
I recommend using this approach until this issue is resolved

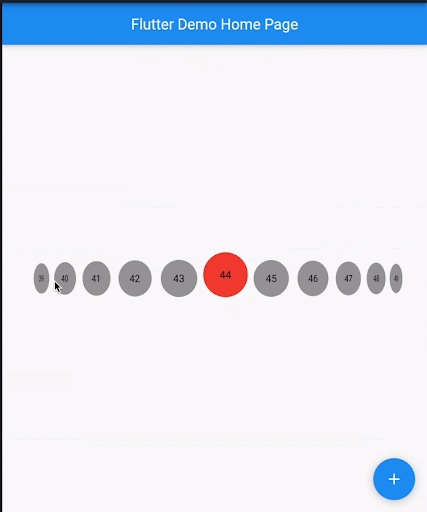

Heres the output
Solution 3:
You can use this flutter package https://pub.dev/packages/carousel_slider. It also has a very helpful description and few samples to see how it looks. And it's compatible with dart 2.0 too.
Solution 4:
You can make this work with the help of ListView and PageView along with NotificationListener.
Below is my code for the same-
import 'dart:math';
import 'package:flutter/material.dart';
const SCALE_FRACTION = 0.9;
const FULL_SCALE = 1.0;
final PAGER_HEIGHT = SizeConfig.screenHeight*0.32;
const PAGER_WIDTH = double.infinity;
class PaymentWidget extends StatefulWidget {
@override
State<StatefulWidget> createState() => _PaymentState();
}
class _PaymentState extends State<PaymentWidget> {
double viewPortFraction = 0.9;
int currentPage = 1;
double page = 2.0;
PageController pageController;
final List<String> _cardsImages = ['image/path1', 'image/path2',
'image/path3', 'image/path4'];
@override
void initState() {
pageController = PageController(
initialPage: currentPage, viewportFraction: viewPortFraction);
super.initState();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: null,
body: _creditCardsList()
);
}
Widget _creditCardsList() {
return ListView(
shrinkWrap: true,
children: <Widget>[
Container(
height: PAGER_HEIGHT,
child: NotificationListener<ScrollNotification>(
onNotification: (ScrollNotification notification) {
if (notification is ScrollUpdateNotification) {
setState(() {
page = pageController.page;
});
}
},
child: PageView.builder(
onPageChanged: (pos) {
setState(() {
currentPage = pos;
});
},
physics: BouncingScrollPhysics(),
controller: pageController,
itemCount: _cardsImages.length,
itemBuilder: (context, index) {
final scale =
max(SCALE_FRACTION, (FULL_SCALE - (index - page).abs()) + viewPortFraction);
return CreditCardTile(
_cardsImages[index], scale);
},
),
),
),
],
);
}
Widget CreditCardTile(String image, double scale) {
return Align(
alignment: Alignment.bottomCenter,
child:Container(
height: PAGER_HEIGHT * scale,
width: PAGER_WIDTH * scale,
child: Card(
elevation: 5,
shadowColor: constColors.blueWhiteShade,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(10.0)
),
clipBehavior: Clip.antiAlias,
child: Image.asset(
image,
fit: BoxFit.cover,
),
)
) ,
);
}
Solution 5:
copy this code and used it
import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';
class ListWheelScrollViewX extends StatelessWidget {
final Axis scrollDirection;
final List<Widget>? children;
final ScrollController? controller;
final ScrollPhysics? physics;
final double diameterRatio;
final double perspective;
final double offAxisFraction;
final bool useMagnifier;
final double magnification;
final double overAndUnderCenterOpacity;
final double itemExtent;
final double squeeze;
final ValueChanged<int>? onSelectedItemChanged;
final bool renderChildrenOutsideViewport;
final ListWheelChildDelegate? childDelegate;
final Clip clipBehavior;
const ListWheelScrollViewX({
Key? key,
this.scrollDirection = Axis.vertical,
this.controller,
this.physics,
this.diameterRatio = RenderListWheelViewport.defaultDiameterRatio,
this.perspective = RenderListWheelViewport.defaultPerspective,
this.offAxisFraction = 0.0,
this.useMagnifier = false,
this.magnification = 1.0,
this.overAndUnderCenterOpacity = 1.0,
required this.itemExtent,
this.squeeze = 1.0,
this.onSelectedItemChanged,
this.renderChildrenOutsideViewport = false,
this.clipBehavior = Clip.hardEdge,
required this.children,
}) : childDelegate = null,
super(key: key);
const ListWheelScrollViewX.useDelegate({
Key? key,
this.scrollDirection = Axis.vertical,
this.controller,
this.physics,
this.diameterRatio = RenderListWheelViewport.defaultDiameterRatio,
this.perspective = RenderListWheelViewport.defaultPerspective,
this.offAxisFraction = 0.0,
this.useMagnifier = false,
this.magnification = 1.0,
this.overAndUnderCenterOpacity = 1.0,
required this.itemExtent,
this.squeeze = 1.0,
this.onSelectedItemChanged,
this.renderChildrenOutsideViewport = false,
this.clipBehavior = Clip.hardEdge,
required this.childDelegate,
}) : children = null,
super(key: key);
@override
Widget build(BuildContext context) {
final _childDelegate = children != null
? ListWheelChildListDelegate(
children: children!.map((child) {
return RotatedBox(
quarterTurns: scrollDirection == Axis.horizontal ? 1 : 0,
child: child,
);
}).toList())
: ListWheelChildBuilderDelegate(
builder: (context, index) {
return RotatedBox(
quarterTurns: scrollDirection == Axis.horizontal ? 1 : 0,
child: childDelegate!.build(context, index),
);
},
);
return RotatedBox(
quarterTurns: scrollDirection == Axis.horizontal ? 3 : 0,
child: ListWheelScrollView.useDelegate(
controller: controller,
physics: FixedExtentScrollPhysics(),
diameterRatio: diameterRatio,
perspective: perspective,
offAxisFraction: offAxisFraction,
useMagnifier: useMagnifier,
magnification: magnification,
overAndUnderCenterOpacity: overAndUnderCenterOpacity,
itemExtent: itemExtent,
squeeze: squeeze,
onSelectedItemChanged: onSelectedItemChanged,
renderChildrenOutsideViewport: renderChildrenOutsideViewport,
clipBehavior: clipBehavior,
childDelegate: _childDelegate,
),
);
}
}
Example
ListWheelScrollViewX(
scrollDirection: Axis.horizontal,
itemExtent: 120,
children:...
),
Reference list_wheel_scroll_view_x
changes: convert to null safety
